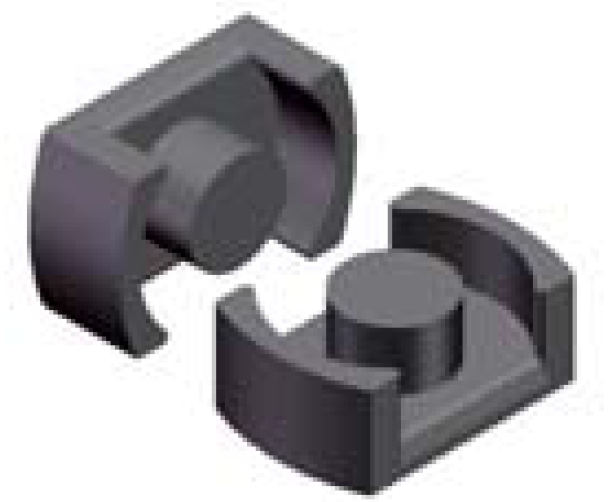

P / Pot Core

P / STANDARD CORES

P / Pot Core

Good shielding, low EMI

—

Part Number Specifications

—

Dimensions

02 DIMENSION DRAWING

Dimensional drawing

UNIT mm / 2D DRAWING

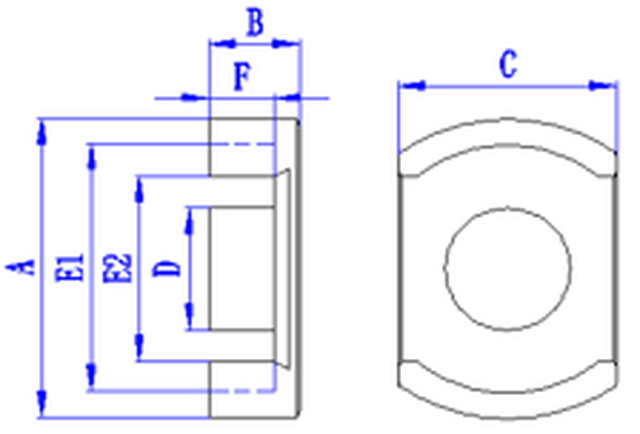

P / Pot Core Dimensional drawing

UNIT mm / 2D DRAWING

03 MODEL TABLE

Part Numbers and Dimensions

Total — part numbers / unit mm

9 types

Dimensions (mm)

part numberMODEL	Aoverall width A	Boverall height B	Clamination thickness C	D1outer diameter related D1	D2inner diameter related D2	E1window height E1	E2window height E2	Fwindow width F
P11×9	11±0.2	4.35±0.1	6.8 REF	5.3±0.2	3±0.15	9.15±0.2	2.5±0.6	3.15±0.15
P14×8	14.05±0.25	4.2±0.1	9.4±0.15	5.9±0.2	3.1±0.15	11.8±0.2	3.3±0.6	3±0.15
P18×11	18±0.4	5.45±0.1	13.4±0.3	7.45±0.15	3.1±0.15	14.9 min	3.8±0.6	3.7±0.15
P22×14	21.6±0.4	6.8±0.2	15±0.3	9.25±0.15	4.25±0.15	17.9 min	4±0.6	4.6±0.15
P26×16	25.5±0.5	8.05±0.2	18±0.4	11.3±0.2	5.3±0.15	21.1 min	5.8±0.6	5.6±0.15
P30×19	30±0.5	9.5±0.2	20.5±0.4	13.3±0.2	5.3±0.15	25.8 min	4.3±0.6	6.7±0.2
P36×22	35.6±0.6	11.2±0.2	26.2±0.6	15.9±0.3	5.5±0.15	29.2 min	5.2±0.6	7.9±0.2
P33×15	33.5±0.6	7.5±0.2	23.7±0.3	13.4±0.3	—	26.9±0.5	18.5 min	4.7±0.2
P33×19	33.5±0.6	9.5±0.2	23.7±0.3	13.4±0.3	—	26.9±0.5	18.5 min	6.7±0.2

Specifications (effective parameters / corresponding material AL / weight)

part numberMODEL	magnetic path length Lemm	effective cross-section Aemm²	effective volume Vemm³	AL·MP40nH/N²	AL·MP44nH/N²	AL·MP95nH/N²	weightg
P11×9	18.8	16.89	317.44	1300	1300	1600	2.37
P14×8	19.87	24.83	493.44	1900	1900	2200	3.61
P18×11	25.8	43.3	1120	2800	2900	3400	7.92
P22×14	32.04	62.15	1991.2	3600	3700	4400	13.06
P26×16	38.15	88.63	3381.1	4500	4700	5700	21.78
P30×19	46.04	118.85	5472.3	5300	5500	6800	37.54
P36×22	53.66	188.86	10134.8	7600	7800	9800	61.92
P33×15	45.4	140.43	6376.18	6400	6600	8100	37.428
P33×19	53.36	141.47	7549.53	5700	5900	7400	45.042

04 SERIES NOTES

Series Description
