RM / STANDARD CORES

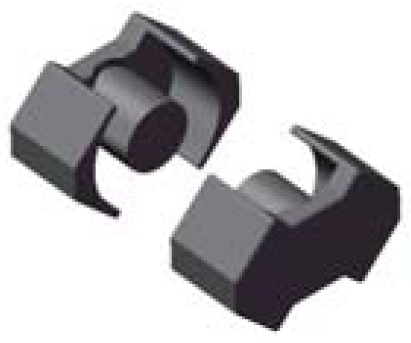

RM Cores
Communication and instrument inductors
02

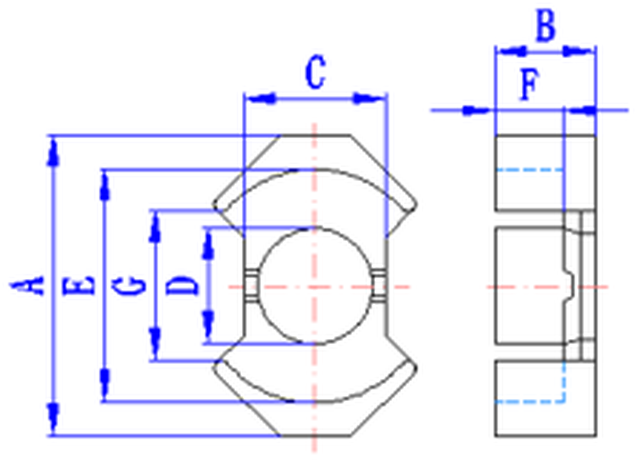

DIMENSION DRAWING
Dimensional drawing
UNIT mm / 2D DRAWING
03
MODEL TABLE
Part Numbers and Dimensions
Total — part numbers / unit mm
4 types
Dimensions (mm)
| part numberMODEL | Aoverall width A | Boverall height B | Clamination thickness C | Dcenter leg width D | Ewindow height E | Fwindow width F | Gouter leg width G |
|---|---|---|---|---|---|---|---|
| RM5 | 14.65±0.3 | 5.7±0.15 | 6.35±0.35 | 4.8±0.15 | 10 min | 3.75±0.2 | 6 min |
| RM6 | 18.3±0.3 | 6.5±0.15 | 8.1±0.3 | 6.2±0.15 | 13.2 min | 4.5±0.15 | 9.6 min |
| RM8 | 22.75±0.45 | 8.4±0.15 | 10.8±0.20 | 8.4±0.15 | 17 min | 5.8±0.2 | 9.5 min |
| RM10 | 27.85±0.65 | 9.5±0.20 | 13.5±0.20 | 10.7±0.20 | 21.6 min | 6.7±0.2 | 14 min |
Specifications (effective parameters / corresponding material AL / weight)
| part numberMODEL | magnetic path length Lemm | effective cross-section Aemm² | effective volume Vemm³ | AL·MP40nH/N² | AL·MP44nH/N² | AL·MP95nH/N² | weightg |
|---|---|---|---|---|---|---|---|
| RM5 | 26.07 | 23.02 | 600.1 | 1500 | 1500 | 1800 | 3.87 |
| RM6 | 32.88 | 33.74 | 1109.4 | 1900 | 2000 | 2400 | 6.18 |
| RM8 | 41.58 | 59.38 | 2469.1 | 2900 | 2900 | 3600 | 13.77 |
| RM10 | 49.3 | 85.16 | 4198.5 | 3600 | 3800 | 4700 | 21.6 |
02
PROCESS GALLERY
Machining photos
4 types
04
SERIES NOTES
